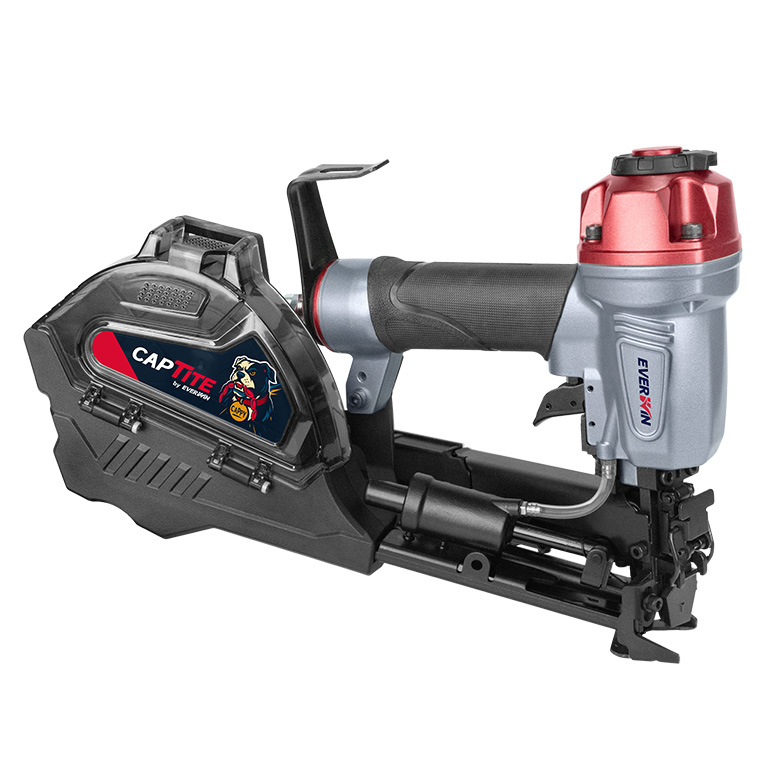

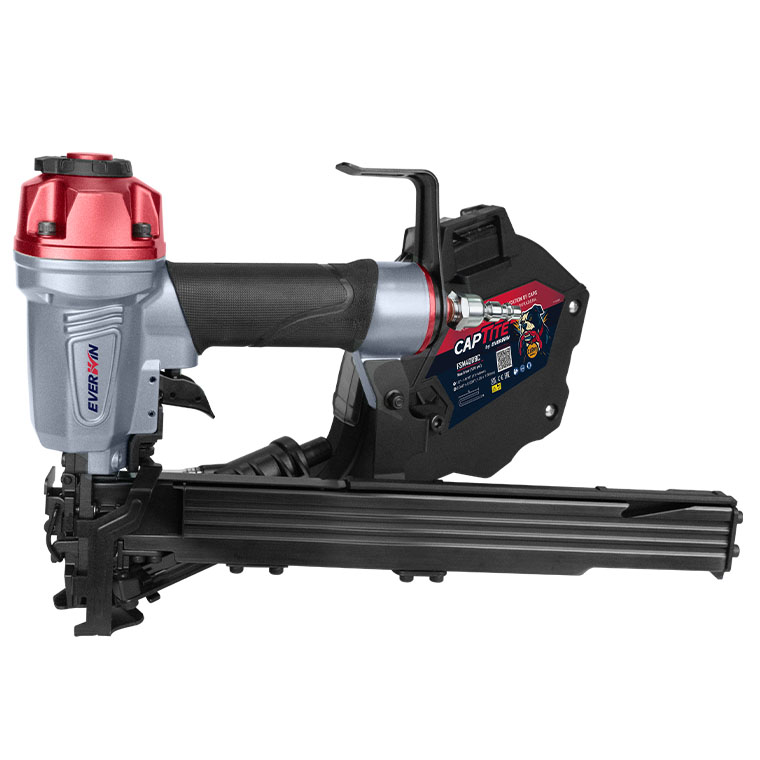

FSM40RBC
1-9/16"(40mm) Roll Cap Stapler

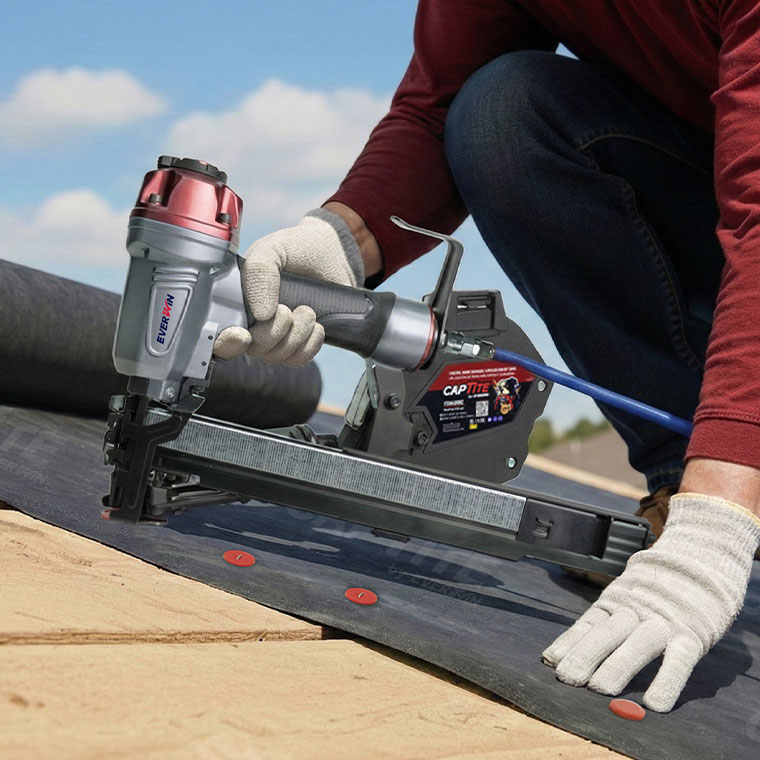

EVERWIN’s FSM40RBC 1-9/16" (40mm) pneumatic cap stapler delivers fast, consistent fastening for roofing and house wrap applications. Weighing only 2.18 kg (4.81 lbs), this lightweight cap stapler reduces fatigue and supports comfortable, all-day jobsite use.
Designed to drive an 18 gauge staple with genuine EVERWIN roll cap packs, the FSM40RBC ensures secure, uniform attachment with every trigger pull. A patented cap feed and cutoff system provides smooth, uninterrupted performance, while tool-free depth of drive adjustment allows quick, precise tuning. The easy-open cap magazine speeds up reloading, and the adjustable belt hook keeps the tool within easy reach.
An optimized lower safety improves firing speed and durability while minimizing drag and surface damage. Powered by a high-performance industrial engine, this plastic cap stapler is ideal for roofing felt installation and cap staples for house wrap, and is compatible with common competitive fasteners and caps. Built for professionals, the FSM40RBC delivers a reliable button cap stapler and a versatile cap fastening solution for demanding work.
- APPLICATIONS
- House Wrap
- Roofing Felt
- Timber Wrap
- Foam Insulation
- Corrugated Sheets to Pallets
- Silt Fence
FEATURES
HIGH-PERFORMANCE INDUSTRIAL ENGINE.
TOOL-FREE DEPTH ADJUSTMENT.
PATENTED CAP FEED SYSTEM.
IMPACT READY NOSE.
ADJUSTABLE EXHAUST.
TOOL-FREE ADJUSTABLE BELT HOOK.
Faster cycle times
TOOL SPECIFICATION
| Weight | 2.18 kgs (4.81 lbs) |
|---|---|
| Height | 237.5mm (9.35") |
| Width | 190mm (7.52") |
| Length | 358.2mm (14.1") |
| Operating Pressure | 5~8 bar (80~110 psi) |
| Driving Power | 160 In-lbs |
| Air Consumption (@90psi) | 0.758 (1.606cfm) |
FASTENER SPECIFICATION
| Type | 18 Guage 3/8" Crown staples |
|---|---|
| Loading Capacity | 200 staples, 200 Caps |
| Nail Length | 13~40mm(1/2"~1-9/16") |
| Nail Head Dia. | 9.5mm(3/8") |
| Nail Shank Dia. | 1.25x 1.00mm (0.49" x 0.039") |
