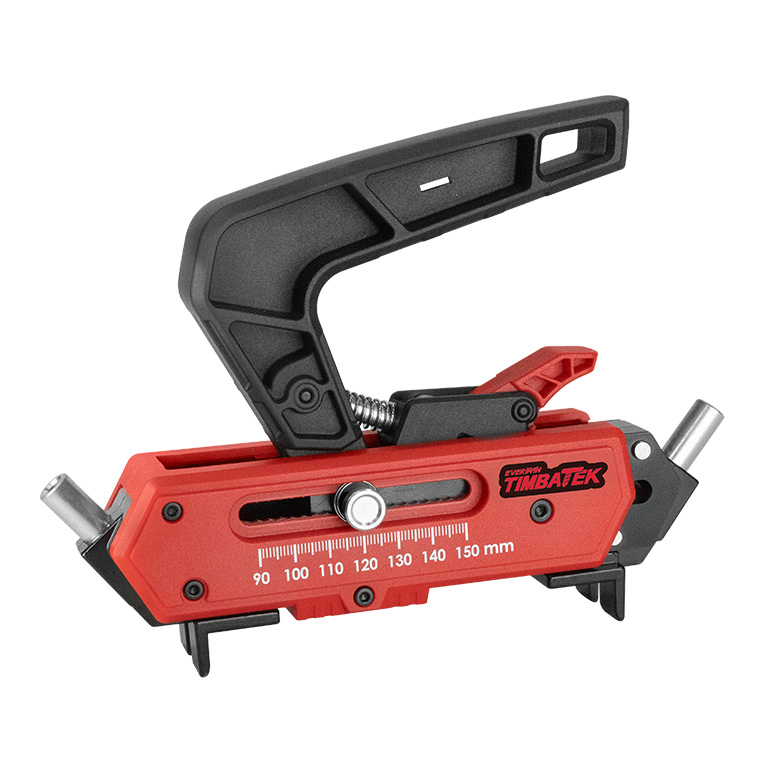

Hidden Fastening System
HDJ1
Create a sleek, fastener-free deck with the TIMBATEK Deck Jig™, designed to work seamlessly with TIMBATEK Deck Screws. Featuring built-in spacers for accurate board spacing, a clamp adjustable for varying board widths, and hardened screw guides, this concealed-fastening system ensures a clean, screw-free finish. Enjoy a beautiful, durable deck without the distraction of visible fasteners. Here’s how this works
Show more
Show less
- APPLICATIONS
- Outdoor decking construction
- Wood decking
- Edge fixing
- Home improvement
FEATURES

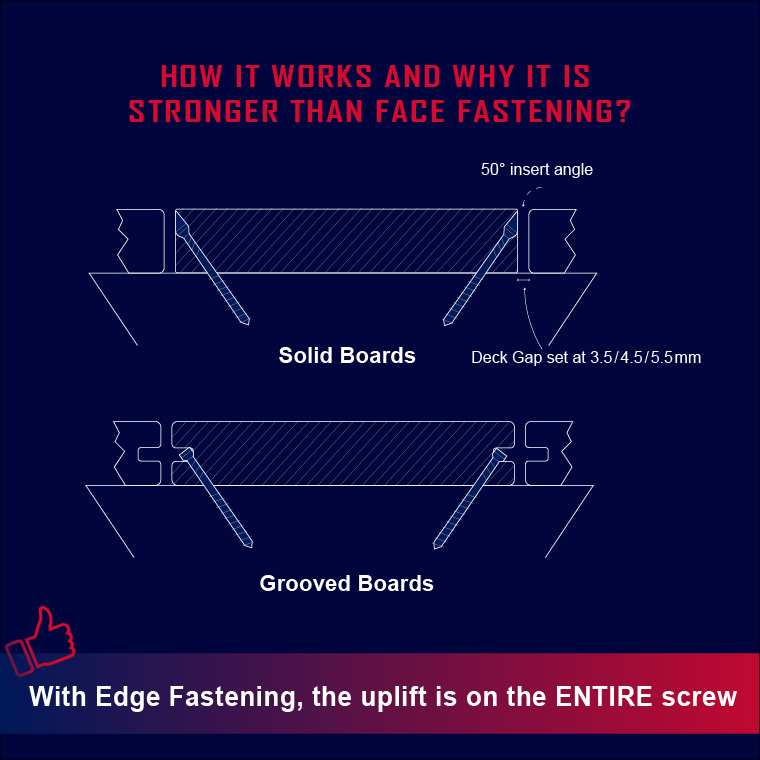

50° HARDENED SCREW GUIDES
．Create concealed deck fixings to prolong decking life, and improve the appearance
BUILT-IN BOARD SPACERS
．Create a consistent and accurate 3.5mm, 4.5mm, 5.5mm gap between boards for drainage and expansion
PINCH-FREE ERGONOMIC TRIGGER
．Create a consistent and accurate 3.5mm, 4.5mm, 5.5mm gap between boards for drainage and expansion

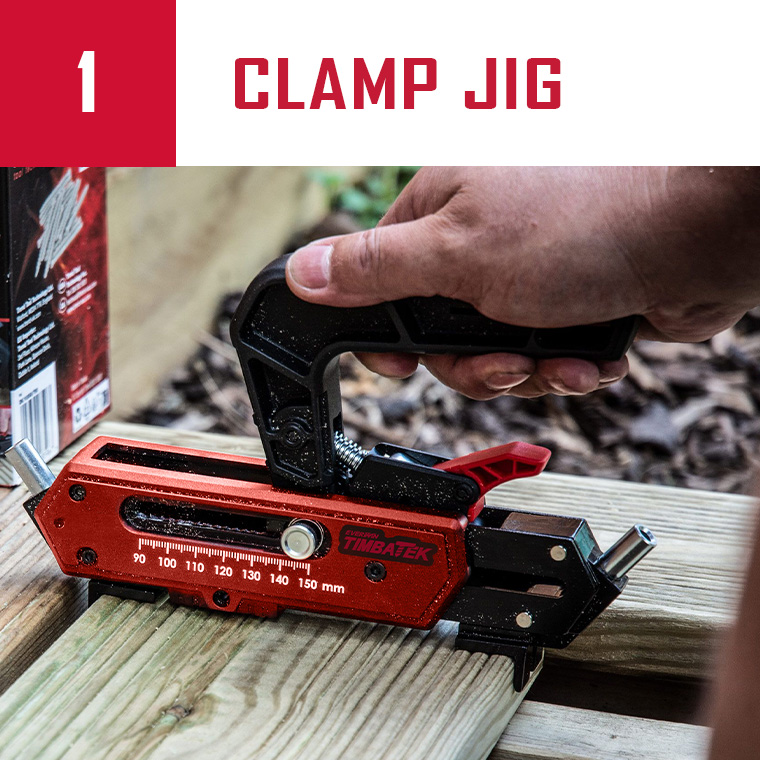

QUICK-RELEASE CLAMPING ARM
．Secures the jig to the decking board for easier, accurate installation
90-150 MM BOARD WIDTH ADJUSTMENT
．To suit a large range of standard and non-standard boards
ON-BOARD TOOL STORAGE
．For storing a backup driver bit
FASTENER SPECIFICATION
Trim head decking screws up to 5.15mm in head dia
| Product Code | Length | Material / Finish |
|---|---|---|
| HDJS048050 | 50mm | 2" | 316 |
| HDJS048060 | 60mm | 2.36" | 316 |
| HDJS048075 | 75mm | 2.95" | 316 |
