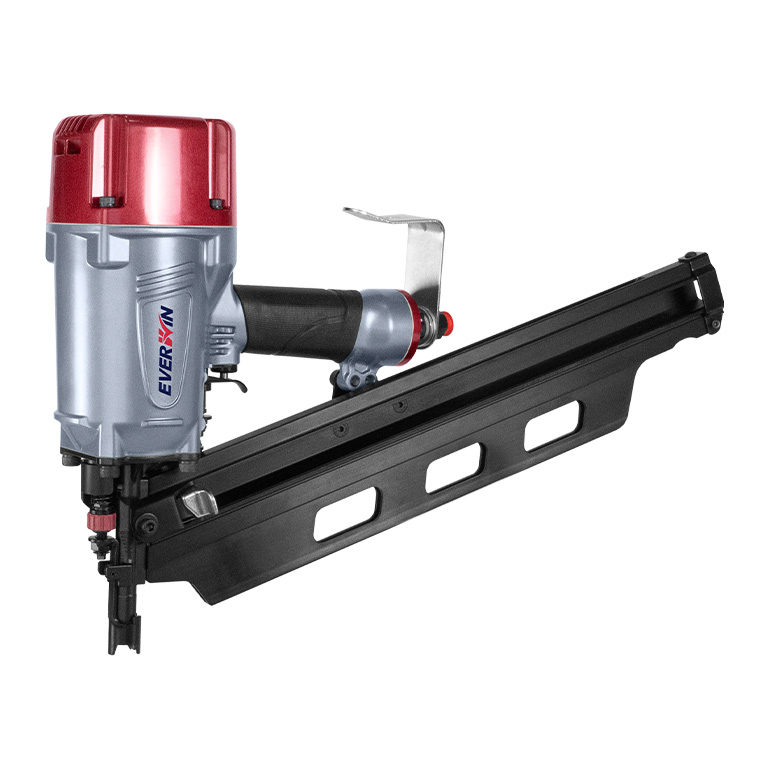

FSN2283BD
Construction 90mm (3-1/2") 21° Plastic Collated Strip Framing Nailer
The FSN2283BD delivers precision depth control in our flagship pneumatic framing nailer series. Incorporating the same reliable engineering as the trusted FSN2283B, this well-balanced 21-degree framing nail gun weighs 4.11 kg (9.06 lbs) and features a comfort grip handle for extended timber frame construction and wall panel construction projects.
Engineered for sheathing, framing, decking, and general construction applications, this heavy-duty nailer features intuitive tool-free depth adjustment that enables rapid nail setting optimization, delivering exceptional versatility and operational flexibility across varying material densities and project specifications.This pneumatic framing nail gun shoots 21-degree plastic-collated framing nails up to 90mm (3-1/2") in length. This professional framing nailer handles collated framing nails with rugged reliability and precision control that demanding job sites require.
Show more
Show less
- APPLICATIONS
- Sheathing
- Framing
- General Construction
FEATURES
FAST, POWER-BOOSTED INDUSTRIAL ENGINE
ALUMINUM HARDLINER™ MAGAZINE
HEAVY DUTY RAFTER HOOK ASSEMBLY
DEPTH CONTROL (FSN2283BD ONLY)
2 trigger options: -st (sequential), -ct (contact)
TOOL SPECIFICATION
| Weight | 4.11 kgs (9.06 lbs) |
|---|---|
| Height | 353.4mm(13.9") |
| Width | 132.7mm(5.2") |
| Length | 529mm(20.8") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power | 780 In-lbs |
| Air Consumption (@90psi) | 2.1 liter/sec (4.4 cfm) |
FASTENER SPECIFICATION
| Type | 21° Plastic Collated Nails |
|---|---|
| Loading Capacity | 70 |
| Nail Length | 50~90mm (2"~3-1/2") |
| Nail Head Dia. | 6.8~8.0mm (0.268"~0.315") |
| Nail Shank Dia. | 2.9~3.8mm (0.113"~0.148") |
