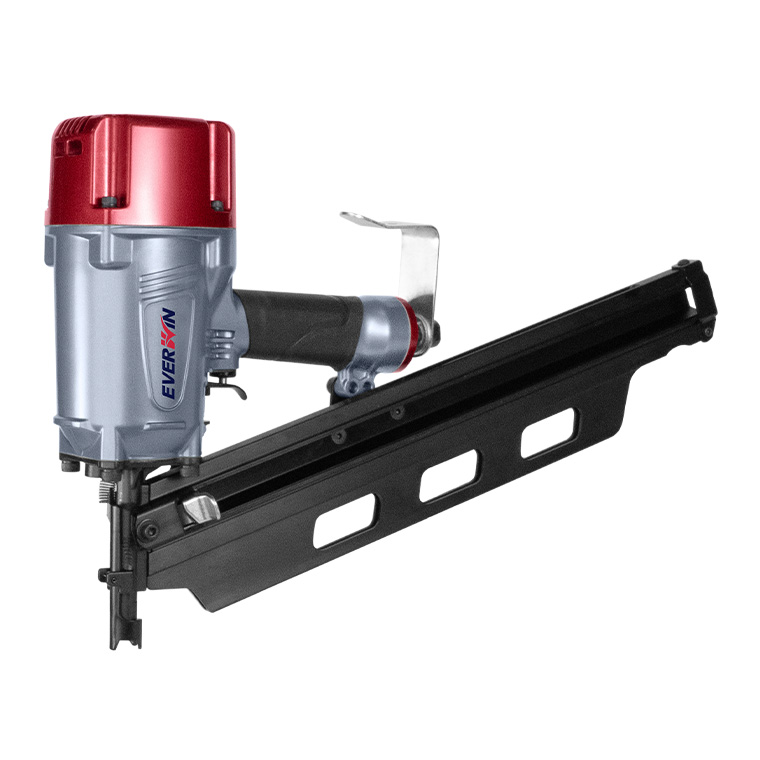

FSN2283B
Construction 90mm (3-1/2") 21° Plastic Collated Strip Framing Nailer
The FSN2283B is a powerhouse pneumatic framing nailer engineered for sheathing, framing, decking, and general construction applications. This well-balanced, aluminum-bodied 21-degree framing nail gun weighs just 4.04 kg (8.98 lbs) and features a comfort grip handle that prevents fatigue during extended timber framing and wall panel construction projects. Built for industrial durability, this heavy-duty nailer features a hardened aggressive safety tip that extends tool life while delivering fast and consistent performance. This pneumatic framing nail gun shoots 21-degree plastic-collated framing nails up to 90mm (3-1/2"") in length.
With flexible trigger options and an open nose design for easy jam clearing, this professional framing nailer handles collated framing nails with the rugged reliability that demanding job sites require.
Show more
Show less
- APPLICATIONS
- Sheathing
- Framing
- General Construction
FEATURES
FAST, POWER-BOOSTED INDUSTRIAL ENGINE
ALUMINUM HARDLINER™ MAGAZINE
HEAVY DUTY RAFTER HOOK ASSEMBLY
DEPTH CONTROL (FSN2283BD ONLY)
2 trigger options: -st (sequential), -ct (contact)
TOOL SPECIFICATION
| Weight | 4.04 kgs (8.98 lbs) |
|---|---|
| Height | 353.4mm(13.9") |
| Width | 132.7mm(5.2") |
| Length | 529mm(20.8") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power | 780 In-lbs |
| Air Consumption (@90psi) | 2.1 liter/sec (4.4 cfm) |
FASTENER SPECIFICATION
| Type | 21° Plastic Collated Nails |
|---|---|
| Loading Capacity | 70 |
| Nail Length | 50~90mm (2"~3-1/2") |
| Nail Head Dia. | 6.8~8.0mm (0.268"~0.315") |
| Nail Shank Dia. | 2.9~3.8mm (0.113"~0.148") |
