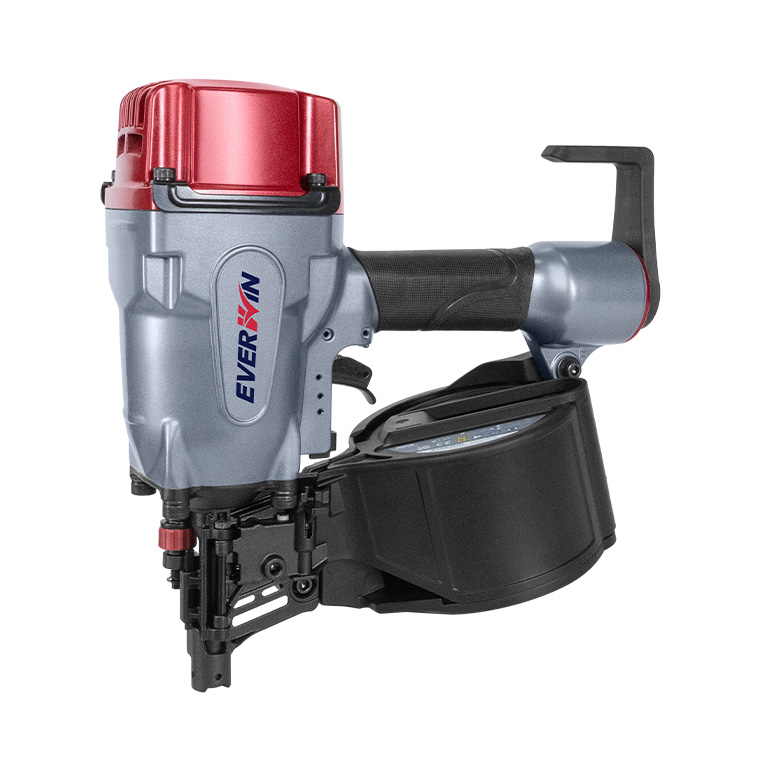

PN65M-DOD
Tool-free Depth-Adjustable Industrial 65mm (2-1/2") Wire Coil Nailer
The Everwin PN65M-DOD coil nailer is an industrial-grade 65mm (2-1/2") pneumatic nailer designed for heavy-duty applications. This robust heavy duty nailer drives 15° wire collated nails from 38-65mm (1-1/2" to 2-1/2") with exceptional power and precision.
Built for high-speed operations, this industrial-grade Wire Coil Nailer features Tool-free adjustable depth-of-drive version and delivers 680 In-lbs driving power at 100 psi. With a large capacity magazine of maximum 300 nails, this professional decking nailer ensures extended work periods with minimal reloading interruptions. The PN65M-DOD combines advanced engineering with reliability, making it the ideal decking tool for high volume construction projects.
This coil nail gun features a durable, ergonomic design with a cushioned grip, fast-loading magazine, dust cover, and robust metal nail trays. Available in 2 trigger types, this nailer is ideal for sheathing, subflooring, roof decking, exterior deck and siding applications, delivering consistent performance across diverse construction requirements
- APPLICATIONS
- Decking
- Sheathing
- Subflooring
- Siding
FEATURES
TOOL FREE DEPTH OF DRIVE ADJUSTMENT
FAST, POWERFUL INDUSTRIAL ENGINE
LIGHTWEIGHT, DURABLE MAGNESIUM FRAME
ROTATING RAFTER HOOK
SWIVEL FITTING INCLUDED
TOOL SPECIFICATION
| Weight | 2.8 kgs (6.2 lbs) |
|---|---|
| Height | 311mm (12.2") |
| Width | 128mm (5") |
| Length | 300mm (11.8") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power | 680 In-lbs |
| Air Consumption (@90psi) | 1.7L/sec (3.6 cfm) |
FASTENER SPECIFICATION
| Type | 15° Wire Collated Nails |
|---|---|
| Loading Capacity | 225~300 |
| Nail Length | 38~65mm (1-1/2"~2-1/2") |
| Nail Head Dia. | 5.7~7.2mm (0.224"~0.283") |
| Nail Shank Dia. | 2.5-3.1MM(0.099-0.120) |
